UNIT 02 · MAVUNO-CLASS · DELICATE-PRODUCE HARVESTER

MAVUNO-7

from Swahili mavuno, the harvest, the yield.

Vision-guided. Identifies ripeness on the vine. Engineered to handle tomato, strawberry, avocado and coffee cherry without bruising.

PILOT PRODUCTION
Download Spec Sheet (PDF)Request a Pilot
MAVUNO-7 delicate-produce harvester

AT A GLANCE

POWER

48V Solar Hybrid

OPERATING TIME

12 hours per charge

HARVEST RATE

24 tonnes / day at peak

GRIP FORCE

0.4 N per fruit

SORTING

3-grade onboard

VISION

Multi-spectral ripeness

CROPS

Tomato · Strawberry · Avocado · Coffee · Chili

WARRANTY

3 yrs / harvest cycle

01 / ANATOMY OF THE MACHINE

Every part accounted for.

MAVUNO-7 annotated anatomy
01
02
03
04
05
06
07
08
01

Multi-Spectral Vision Bar

Quad-camera array detecting ripeness by sugar density.

02

Gantry Arm System

Adjustable boom spanning crop rows.

03

Soft-Pneumatic Grippers

20 grippers descending into canopy at 0.4N each.

04

Sorting Conveyor

Internal three-lane belt routing each fruit by grade.

05

Three Output Bins

MARKET / PROCESS / COMPOST. Removable.

06

Crop-Row Wheels

Soft pneumatic tires that ride between rows without compacting.

07

Power & Battery Bay

Centre-rear for balanced weight.

08

Per-Fruit Data Logger

Records ripeness, grade, position and weight for every fruit.

02 / HOW IT WORKS

Component by component.

01

The Multi-Spectral Vision Bar

A quad-camera array spanning the gantry. Combines RGB, near-infrared and chlorophyll fluorescence to estimate sugar density and skin firmness. Decides ripe/not-ripe per fruit in under 60 ms.

SPECS

  • Cameras4 multi-spectral
  • Decision<60 ms / fruit
  • ChannelsRGB + NIR + ChlF
  • Crops trained5 primary
02

The Soft-Pneumatic Grippers

Twenty independently actuated grippers using food-grade silicone fingers. Each finger applies a calibrated 0.4 N, gentler than a human hand. Pressure feedback prevents bruising on overripe fruit.

SPECS

  • Grippers20 parallel
  • Force0.4 N
  • MaterialFood-grade silicone
  • Cycle1.2 s
03

The Sorting Conveyor

Internal three-lane belt routes every picked fruit by grade in real time. Each lane terminates in a labelled bin: MARKET, PROCESS or COMPOST. Sort decision uses vision data and per-fruit weight.

SPECS

  • Lanes3
  • Throughput240 fruit/min
  • MaterialFDA belt
  • Wash cycleDaily, on-machine
04

The Gantry Arm System

Telescoping boom adjusts row width from 0.8 m to 2.4 m. Height adjusts from 0.4 m to 2.0 m to clear tomato vines, strawberry beds and coffee bushes alike.

SPECS

  • Width0.8 – 2.4 m
  • Height0.4 – 2.0 m
  • Adjust time<2 min
  • DriveServo + lead screw
05

The Removable Bins

Three labelled bins clip out of the chassis in under 10 seconds. Each holds 25 kg of produce. Cooperative receives a WhatsApp ping when a bin is 80% full.

SPECS

  • Bins3
  • Capacity25 kg each
  • Swap<10 s
  • MaterialFood-grade PP
06

The 48V Powertrain

Same shared-platform 48V architecture as KILIMO-1. Four soft-pneumatic wheels run between row spacings without compacting beds. Total continuous output: 9kW.

SPECS

  • Voltage48 V
  • Wheels4 soft pneumatic
  • Continuous9 kW
  • Battery48 V · 5 kWh
07

The Per-Fruit Data Logger

Logs ripeness, grade, weight, GPS position and timestamp for every fruit harvested. Exported as CSV via WhatsApp. The first time most cooperatives have ever held per-fruit data.

SPECS

  • Fields8 per fruit
  • ExportCSV via WhatsApp
  • Buffer60 days
  • PrivacyCooperative-owned
08

The WhatsApp Interface

Same WhatsApp-first command surface as the rest of the fleet. "Harvest tomato, greenhouse 2." Replies include progress, photos, per-grade tonnage and bin status.

SPECS

  • TransportWhatsApp + SMS
  • Languages5
  • MediaText · photo
  • Onboarding<45 min
09

The Repair-First Construction

Identical service philosophy to KILIMO-1. Bolt-on panels, metric fasteners, sourceable connectors, no proprietary tools.

SPECS

  • FastenersMetric standard
  • Max wrench13 mm
  • PanelsBolt-on
  • FinishPowder-coated
10

The Safety System

LiDAR-based pedestrian detection, side-mounted E-stops, remote kill via WhatsApp, and a gantry interlock that disables grippers whenever the boom is in service position.

SPECS

  • Sensors2× LiDAR
  • E-stops2 + remote
  • InterlockGantry-aware
  • AlignmentISO 18497

03 / A DAY IN THE FIELD

From command to report.

STEP 01

Command

Cooperative manager messages MAVUNO-7: "Harvest tomato, greenhouse 2."

STEP 02

Position

Machine drives to field entry, raises gantry to crop row height.

STEP 03

Scan

Vision bar scans each plant, mapping every fruit.

STEP 04

Pick

Grippers descend, picking only ripe fruit, sorting by grade.

STEP 05

Route

Conveyor routes each fruit to MARKET, PROCESS or COMPOST bin.

STEP 06

Swap

When a bin fills, machine signals cooperative to swap empty bin.

STEP 07

Report

Final WhatsApp report: total kilograms, per-grade breakdown, per-fruit data export.

04 / SPARE PARTS CATALOG

Designed to be repaired.

Designed to be repaired with hand tools and locally available parts. Every machine is engineered for repairability.

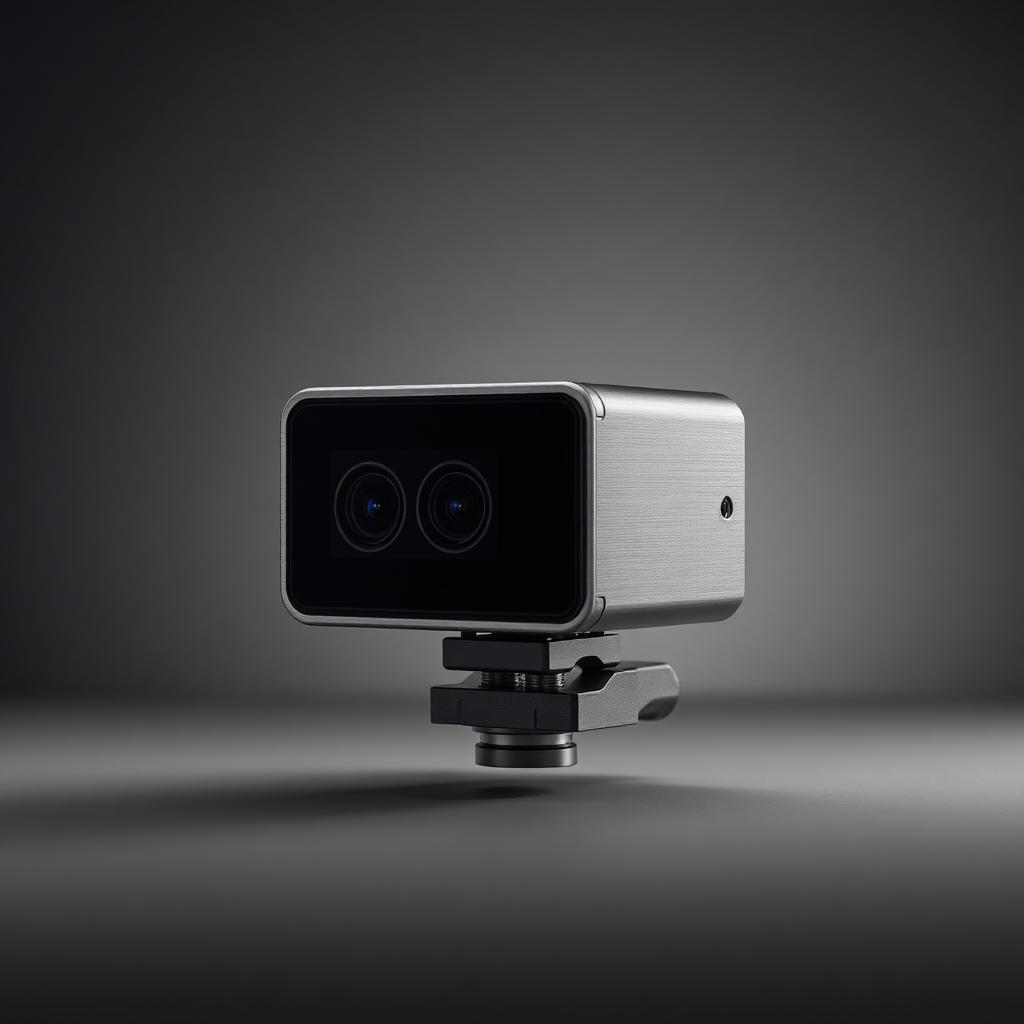

Vision camera moduleMV7-SP-001

Vision camera module

Multi-spectral camera unit.

USER7 DAYS

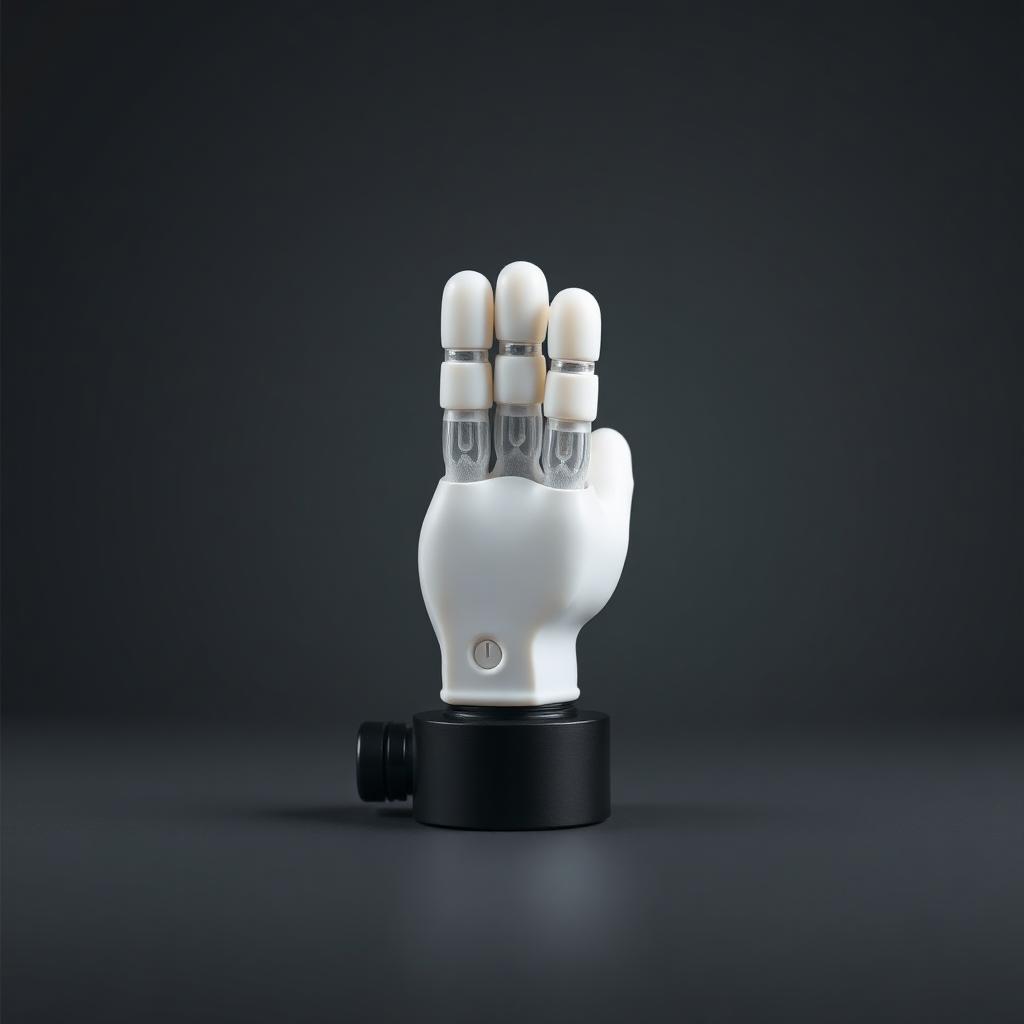

Gripper fingerMV7-SP-002

Gripper finger

Single silicone finger assembly.

USERIN STOCK

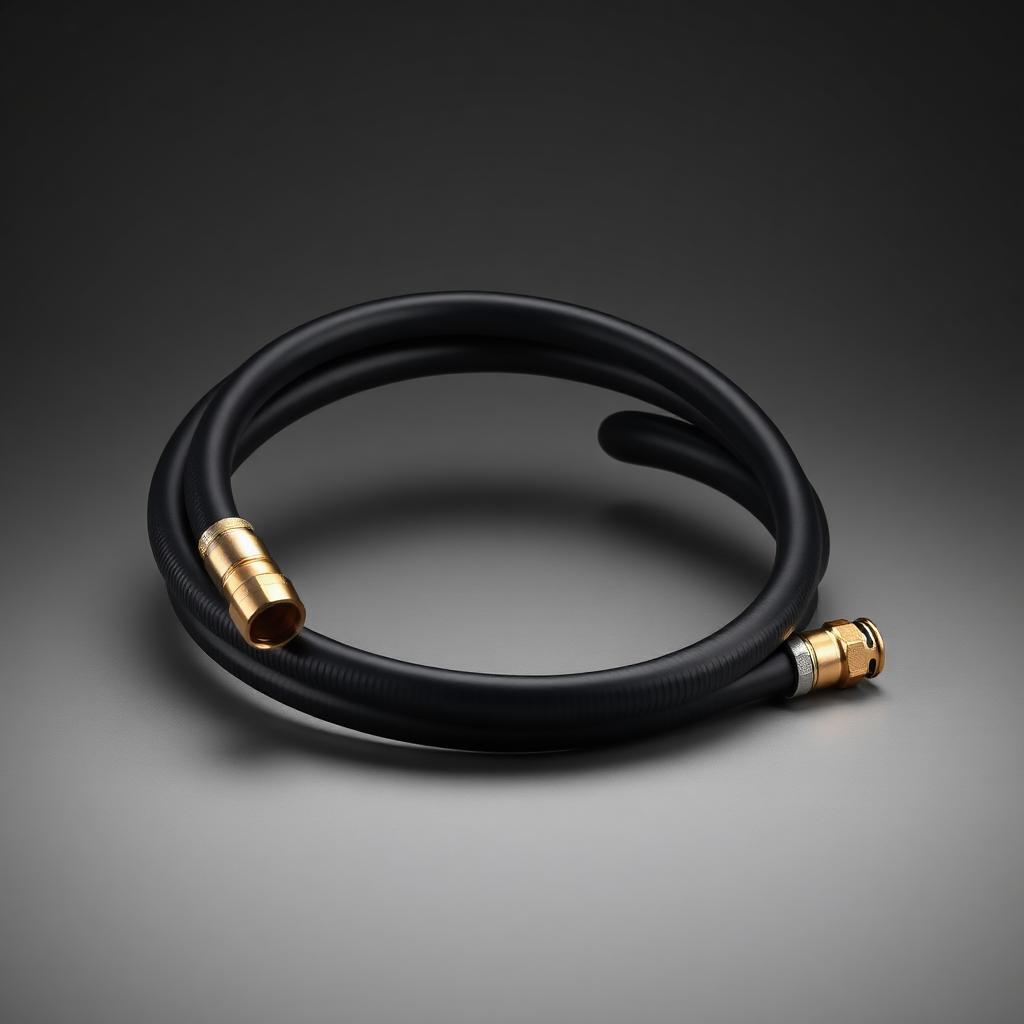

Gripper pneumatic lineMV7-SP-003

Gripper pneumatic line

Replacement pneumatic line.

USERIN STOCK

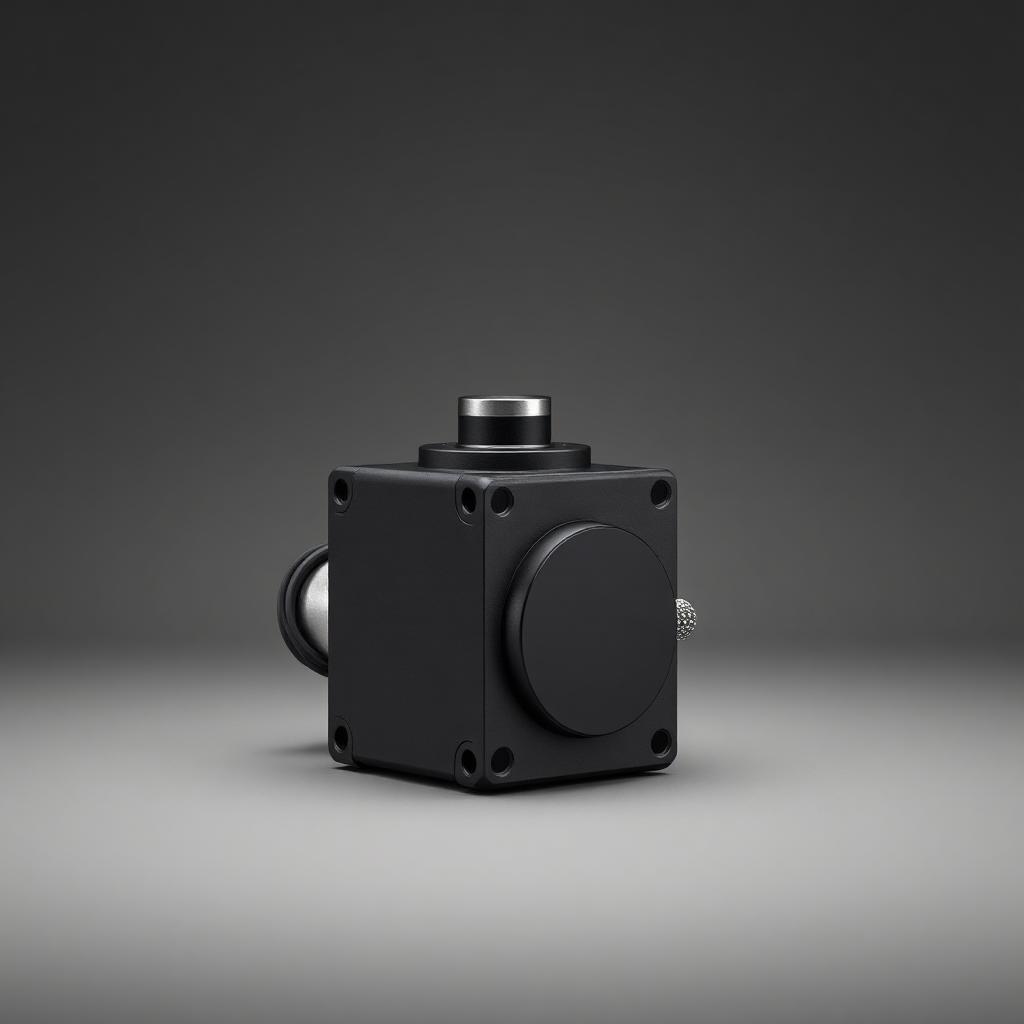

Gantry servo motorMV7-SP-004

Gantry servo motor

Boom drive servo.

WORKSHOP21 DAYS

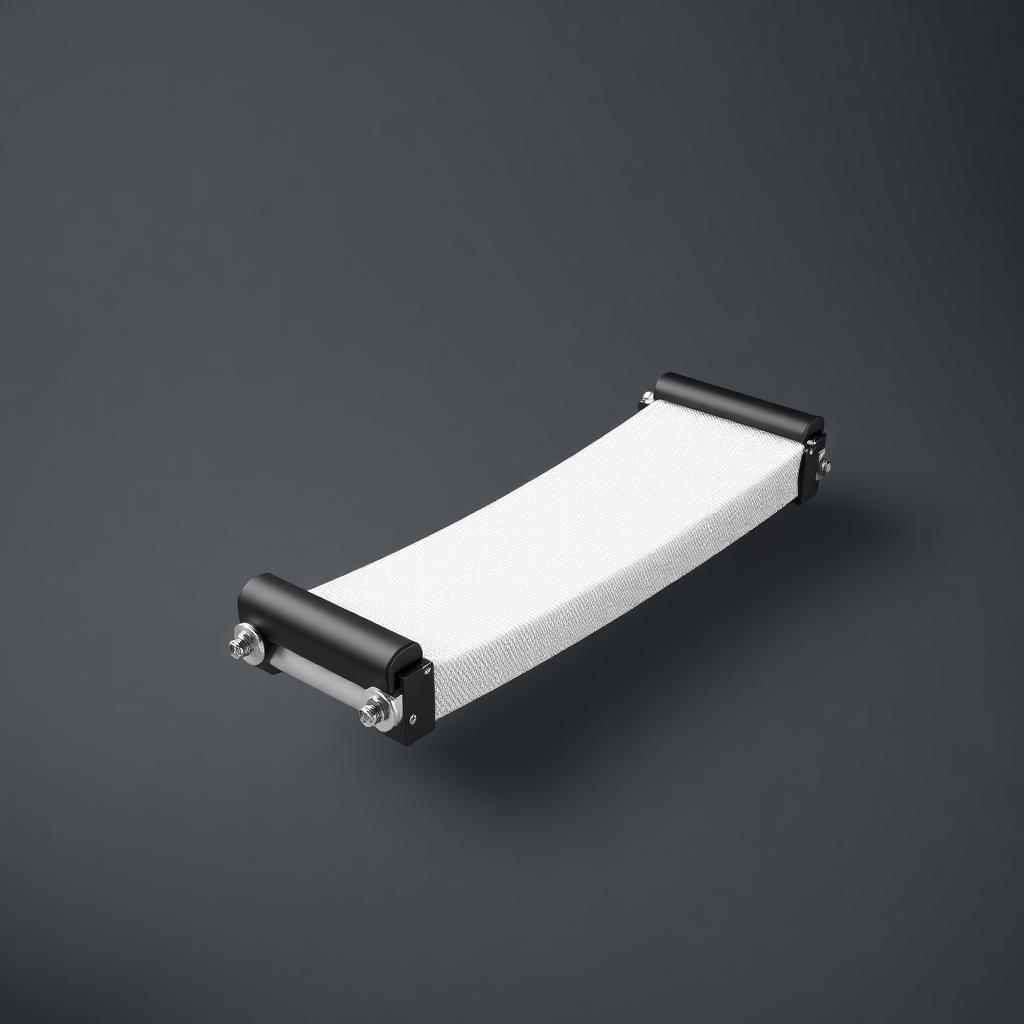

Conveyor belt sectionMV7-SP-005

Conveyor belt section

FDA-grade belt segment.

USER7 DAYS

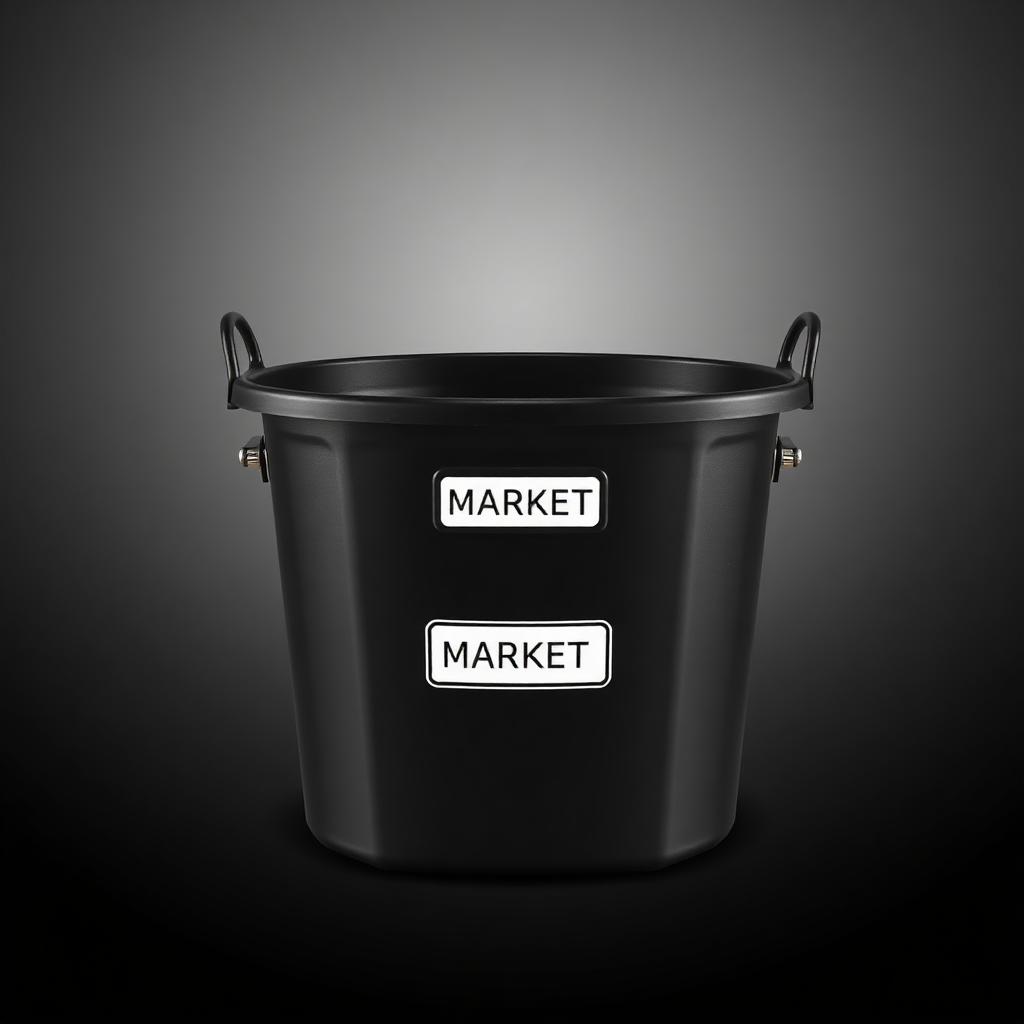

Output binMV7-SP-006

Output bin

Single 25kg labelled bin.

USERIN STOCK

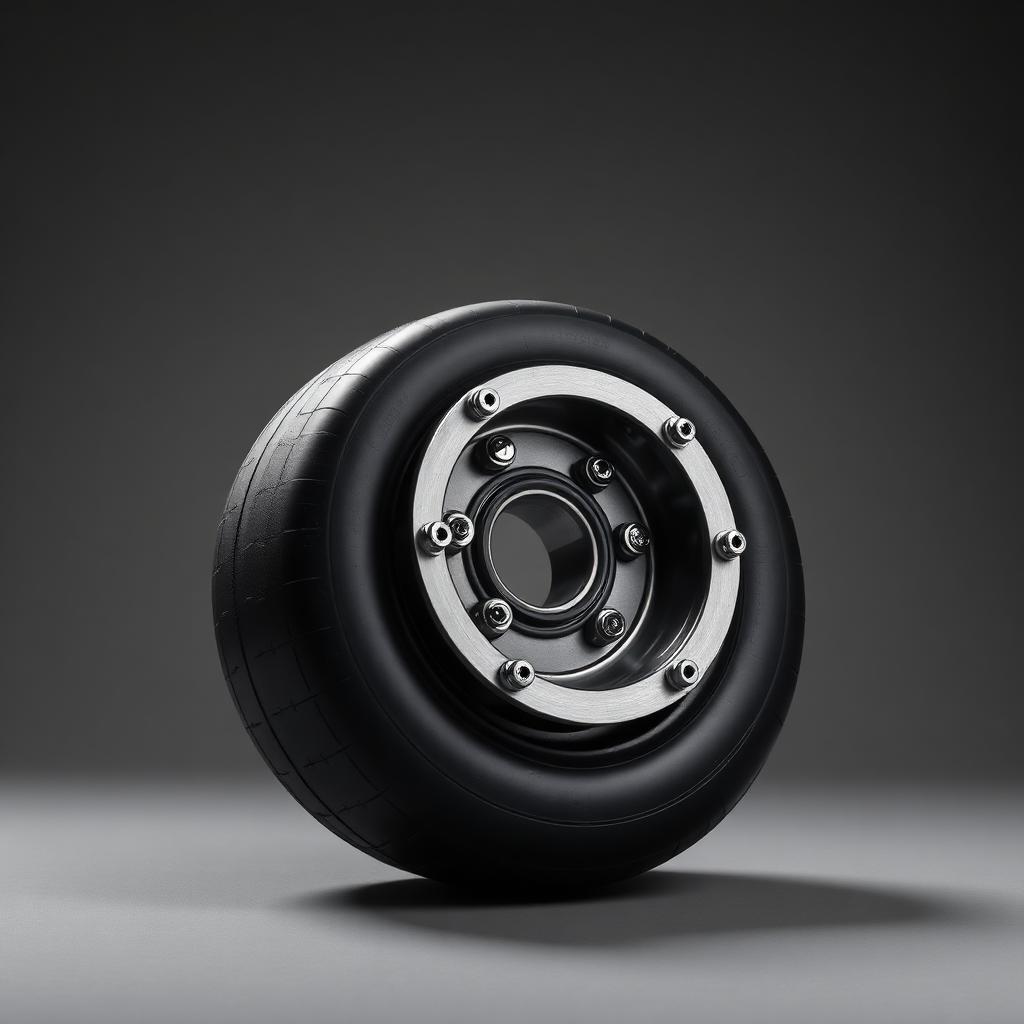

Wheel hubMV7-SP-007

Wheel hub

Soft pneumatic wheel hub.

USER14 DAYS

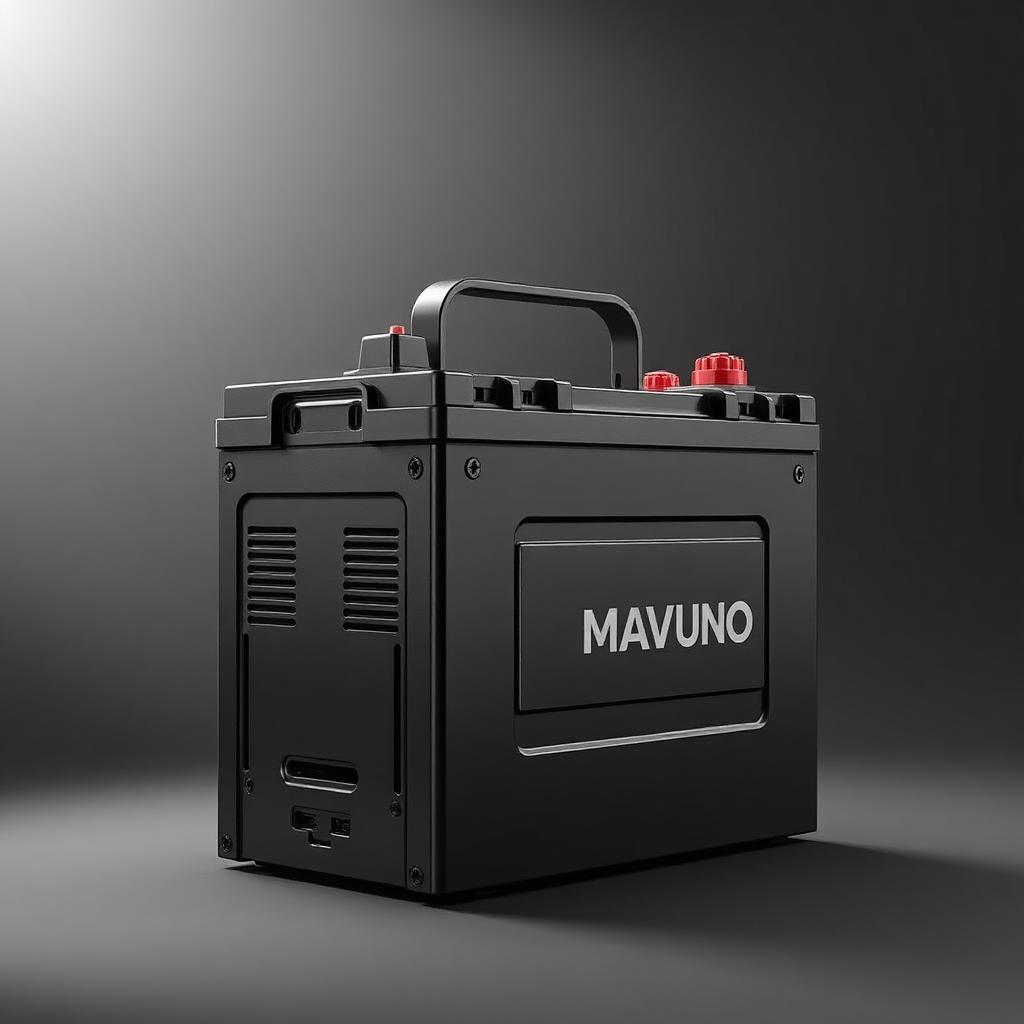

Battery packMV7-SP-008

Battery pack

48V 5kWh complete.

WORKSHOP14 DAYS

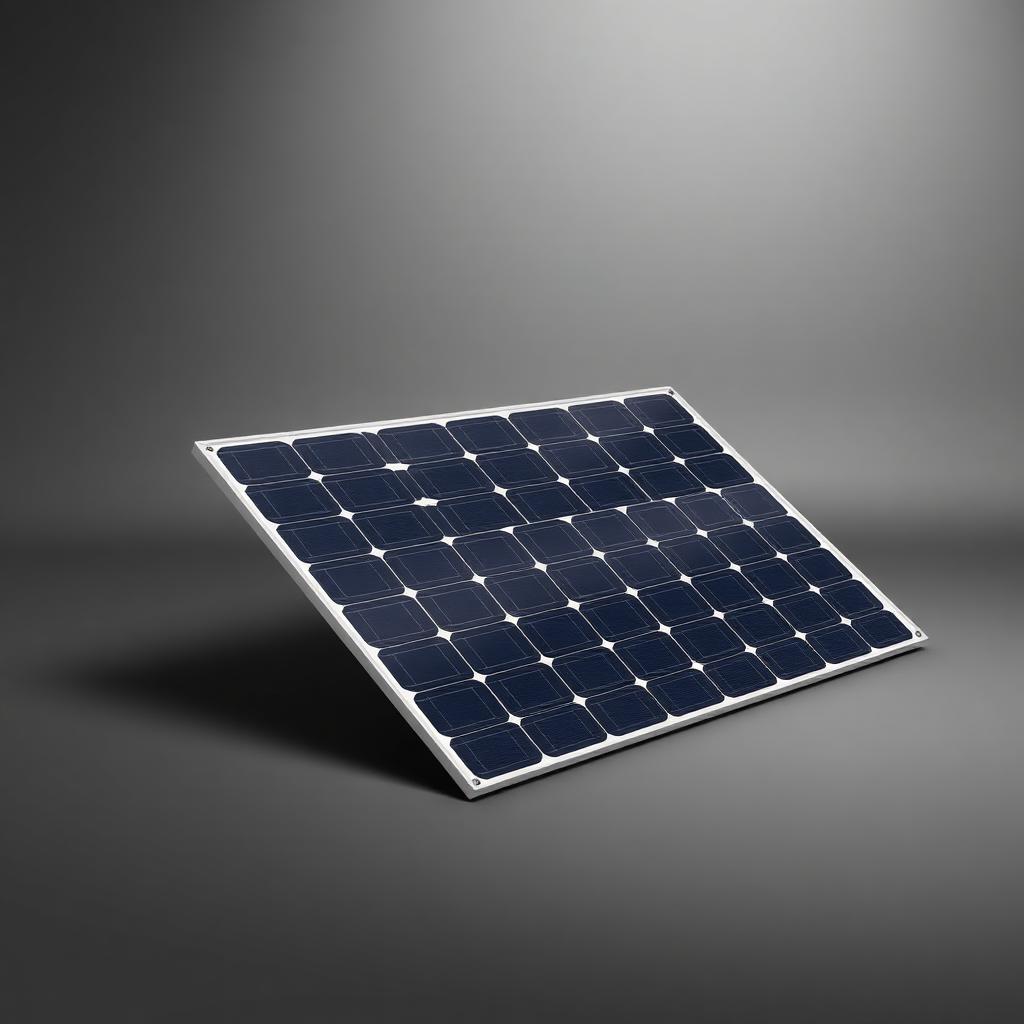

Solar panelMV7-SP-009

Solar panel

200W flexible panel.

USERIN STOCK

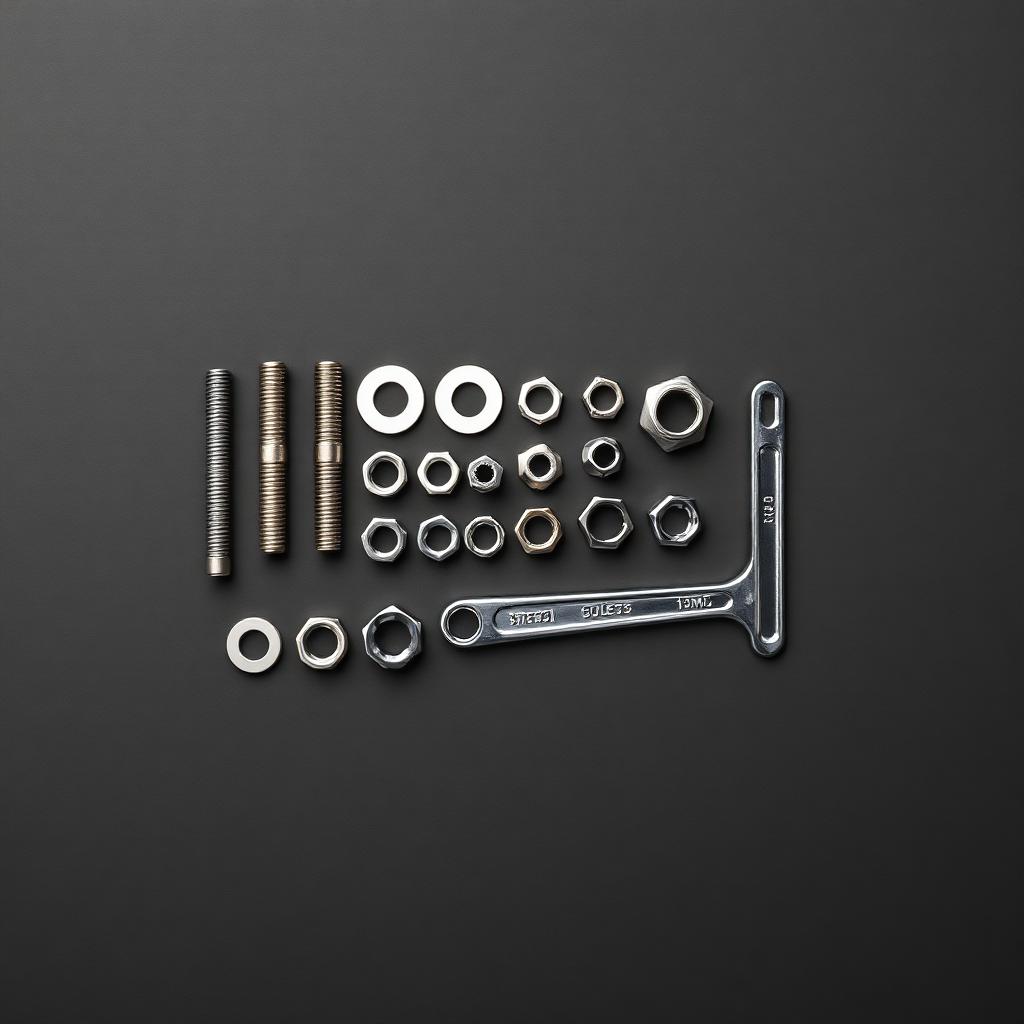

Fastener kitMV7-SP-010

Fastener kit

Standard metric set.

USERIN STOCK

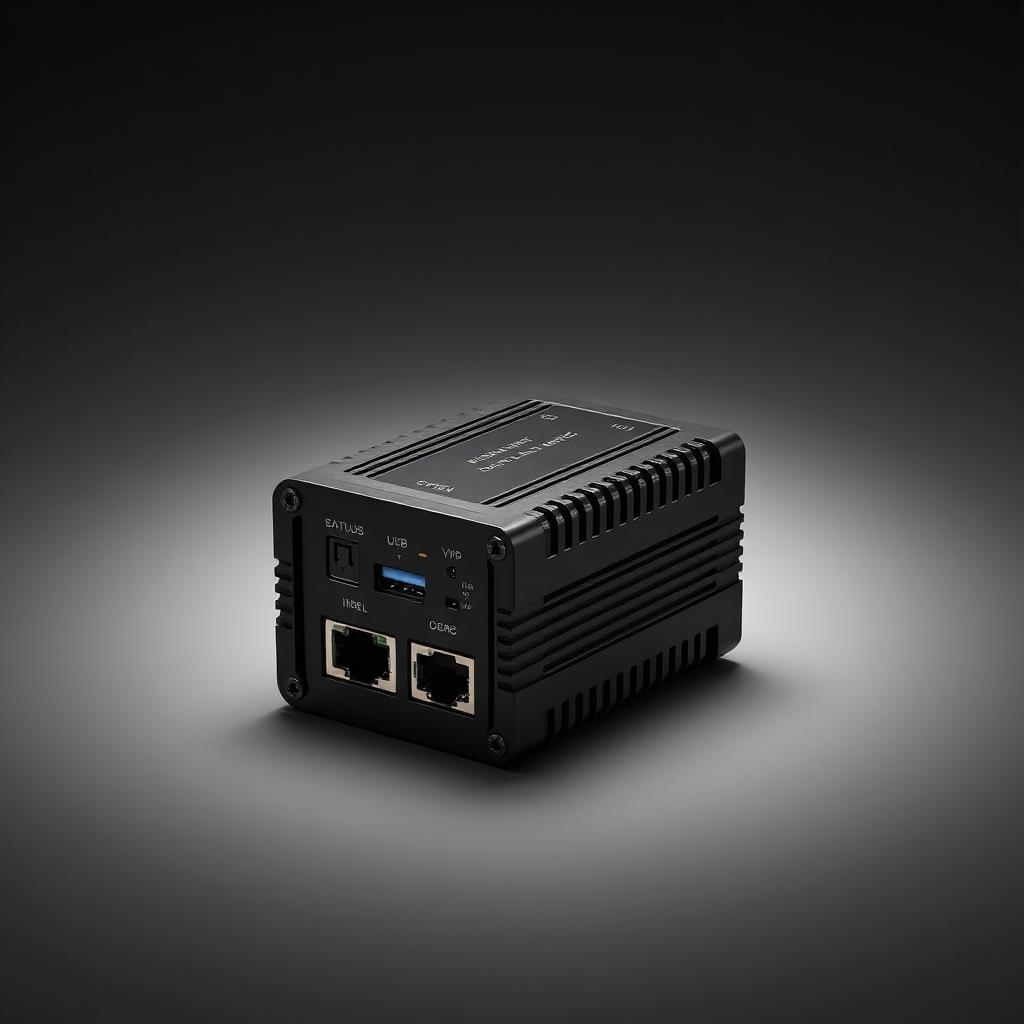

Data logger moduleMV7-SP-011

Data logger module

Replacement logger PCB.

WORKSHOP21 DAYS

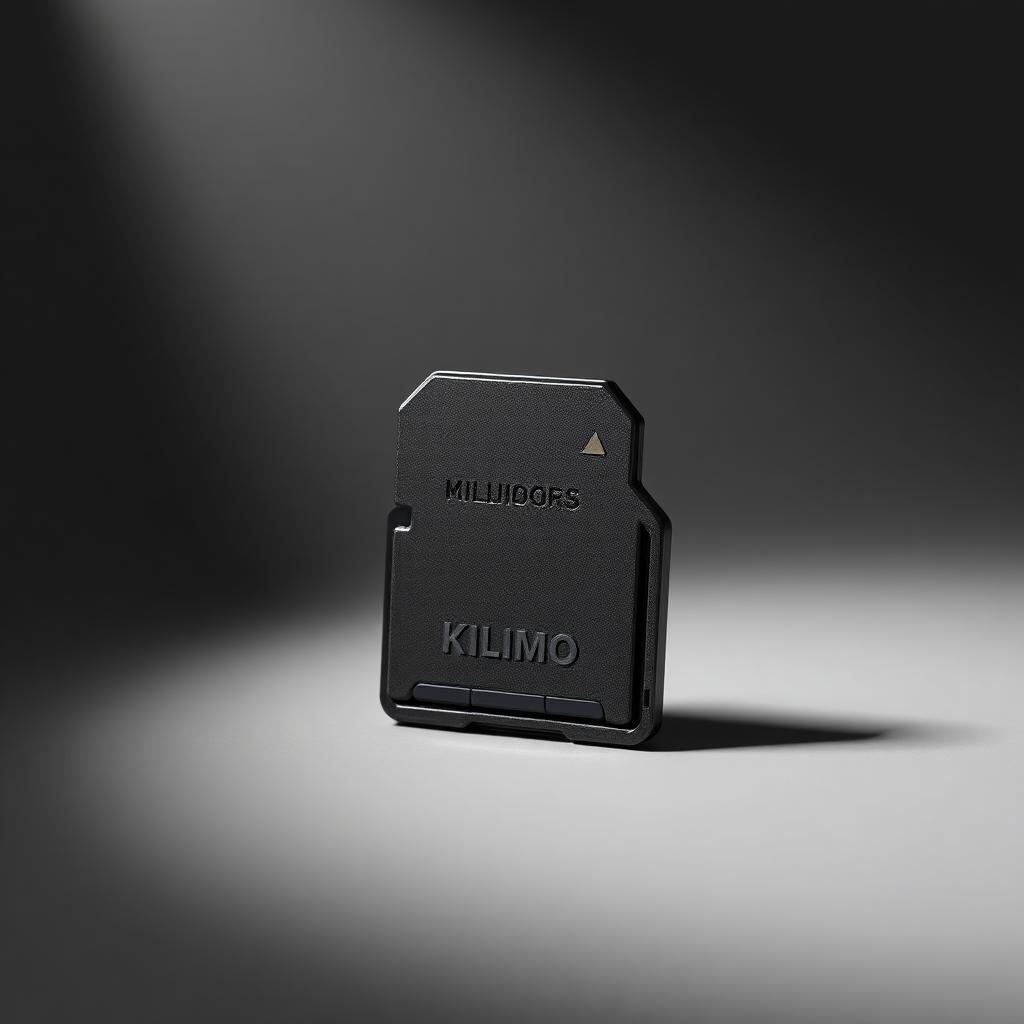

Sorting algorithm cardMV7-SP-012

Sorting algorithm card

Onboard model update SD card.

USERIN STOCK

05 / TECHNICAL SPECIFICATIONS

The full sheet.

  • Architecture48 V DC
  • Continuous power9 kW
  • Battery48 V · 5 kWh LiFePO4
  • Solar input600 W peak
  • Cameras4 multi-spectral
  • Decision latency<60 ms / fruit
  • Crops trainedTomato · strawberry · avocado · coffee · chili
  • Sorting3-grade per fruit
  • Grippers20 parallel
  • Grip force0.4 N
  • Bins3 × 25 kg
  • Peak throughput240 fruit / min
  • InterfaceWhatsApp + SMS
  • Languages5
  • ModemDual-SIM 4G/LTE-M
  • Data exportCSV via WhatsApp
  • Length2,400 mm
  • Width0.8 – 2.4 m (adjustable)
  • Height0.4 – 2.0 m (adjustable)
  • Weight420 kg
  • Operating temp0 – 45 °C
  • IngressIP65
  • Crop typesOpen field + greenhouse
  • E-stops2 + remote
  • InterlockGantry-aware
  • AlignmentISO 18497
  • ChassisWelded steel
  • Wetted surfacesFDA-grade
  • FastenersMetric standard
  • Max wrench13 mm

06 / ENGINEERING PRINCIPLES

What guided this machine.

  1. 01Treat every fruit as though it were sold tomorrow.
  2. 02Soft pneumatics over hard mechanics where contact meets crop.
  3. 03Sort before storage. Storage decisions cannot be undone.
  4. 04The cooperative owns the data its harvest creates.
  5. 05Wash, service and repair without leaving the field.
